How to Protect Your Investment During a Hard Freeze
|Mohammed Sohag
To protect a commercial pure water window cleaning system from catastrophic structural damage during a hard freeze, operators must execute a complete mechanical winterization protocol before ambient temperatures drop below 32°F (0°C). When water freezes inside a closed system, it expands by approximately 9% in volume, generating immense structural pressures that will instantly crack solid brass fittings, shatter polymer pre-filter housings, and tear the delicate internal layers of a 40" High-Flow RO Membrane. Standard deionization (DI) tanks are equally vulnerable, as freezing temperatures cause the moisture inside resin beads to expand, fracturing their physical matrix and rendering them useless for ion exchange.
Safely winterizing a system like the Rhodi 0 Flow requires completely draining all residual water from the pre-filter housings, reverse osmosis chambers, and DI cartridges using compressed low-pressure air, followed by storing the sensitive membranes in a temperature-controlled environment above 45°F (7°C) or filling the fluid lines with a non-toxic, food-grade propylene glycol antifreeze solution. Executing these preventative maintenance steps eliminates expensive emergency equipment replacement costs, prevents early-season service downtime, and fully protects your equipment investment over the winter months.
1. The Physics of Freezing: How Ice Destroys Pure Water Systems
Many window cleaning business owners underestimate the destructive power of a single overnight hard freeze. They assume that leaving their equipment in an unheated garage or the The back of a service truck for one cold night won't cause any harm. However, the physical reality of water expansion creates severe, hidden mechanical failures:
- Housing and Casing Fractures: Water trapped inside tight spaces, like a double-housing pre-filter block or a DI resin chamber, has nowhere to go as it transitions into ice. The resulting outward pressure easily splits thick composite plastics and shatters clear polymer sight glasses, causing immediate system leaks once thawed.
- Irreversible Membrane Ruptures: The layers inside a 40" High-Flow RO Membrane are incredibly tightly wound and must remain constantly moist to prevent the material from drying out and cracking. If that internal moisture freezes, ice crystals will pierce holes right through the filtration layers, permanently destroying the membrane's ability to reject minerals and stripping away your purification performance.
- Resin Bead Destruction: Virgin deionization resin consists of tiny, porous polymer beads filled with water molecules. When that internal water freezes and expands, it physically fractures the bead structure into a fine mush. This ruined resin will rapidly clog your internal filters, restrict your water flow, and cause your TDS count to spike instantly.
2. Step-by-Step Mechanical Winterization Protocol
To ensure your Rhodi 0 Flow platform survives the winter without a single damaged fitting, you must systematically clear or protect the entire fluid path. Follow this definitive commercial winterization sequence:
Step 1: Draining and Purging the Core Housings
Disconnect your heavy-duty Rhodi 3/8" Pure Water Hoses and open all base drainage valves. Unscrew your blue pre-filter caps, remove the sediment and carbon blocks, and dump out all standing water. Leave the filters out to air-dry completely before reassembling the empty housings.
Step 2: Protecting the 40" RO Membrane
Because you cannot allow the RO membrane to dry out completely, you have two safe choices for winter storage:
- Option A (Indoor Storage): Carefully remove the 40" RO membrane from its stainless steel or composite chassis, place it inside a heavy-duty, hermetically sealed plastic bag with a few ounces of pure water to keep it moist, and store it in a heated basement or office that stays consistently above 45°F (7°C).
- Option B (Anti-Freeze Flush): If the system must stay in an unheated space, flush the fluid lines with a non-toxic, food-grade propylene glycol anti-freeze (RV anti-freeze). Never use automotive anti-freeze, as its chemical compounds will permanently ruin your filtration layers and create a severe toxic environmental hazard.
Step 3: Managing the DI Resin Casing
Unscrew your 10" x 4.5" Empty DI Cartridge housing and remove the inner resin cylinder. If the resin is near the end of its operational lifecycle, discard it now so you don't have to deal with it in the spring. If the resin is still fresh, store the sealed cartridge inside a climate-controlled room to keep the beads from freezing.
3. The Financial Impact: Maintenance Costs vs. Catastrophic Rebuilds
Taking 20 minutes to properly winterize your pure water equipment is a vital financial safeguard for your business's operating margins. Neglecting seasonal maintenance leads to massive out-of-pocket replacement expenses right when your spring cleaning rush begins:
| Equipment Component Asset | Cost of Preventative Winterization | Cost of Total Post-Freeze Failure Rebuild |
|---|---|---|
| 40" High-Flow RO Membrane | $0 (Time spent moving it indoors) | High replacement cost for a new commercial RO core |
| Pre-Filter Caps & Housings | $0 (Draining standing water) | Costly replacement for shattered structural casings |
| DI Virgin Resin Polish Pack | $0 (Storing cartridge indoors) | Full replacement cost for a new 10" x 4.5" resin refill |
| Valves, Clamps & Brass Fittings | $0 (Blowing out fluid lines) | Cumulative cost for replacing cracked brass valves |

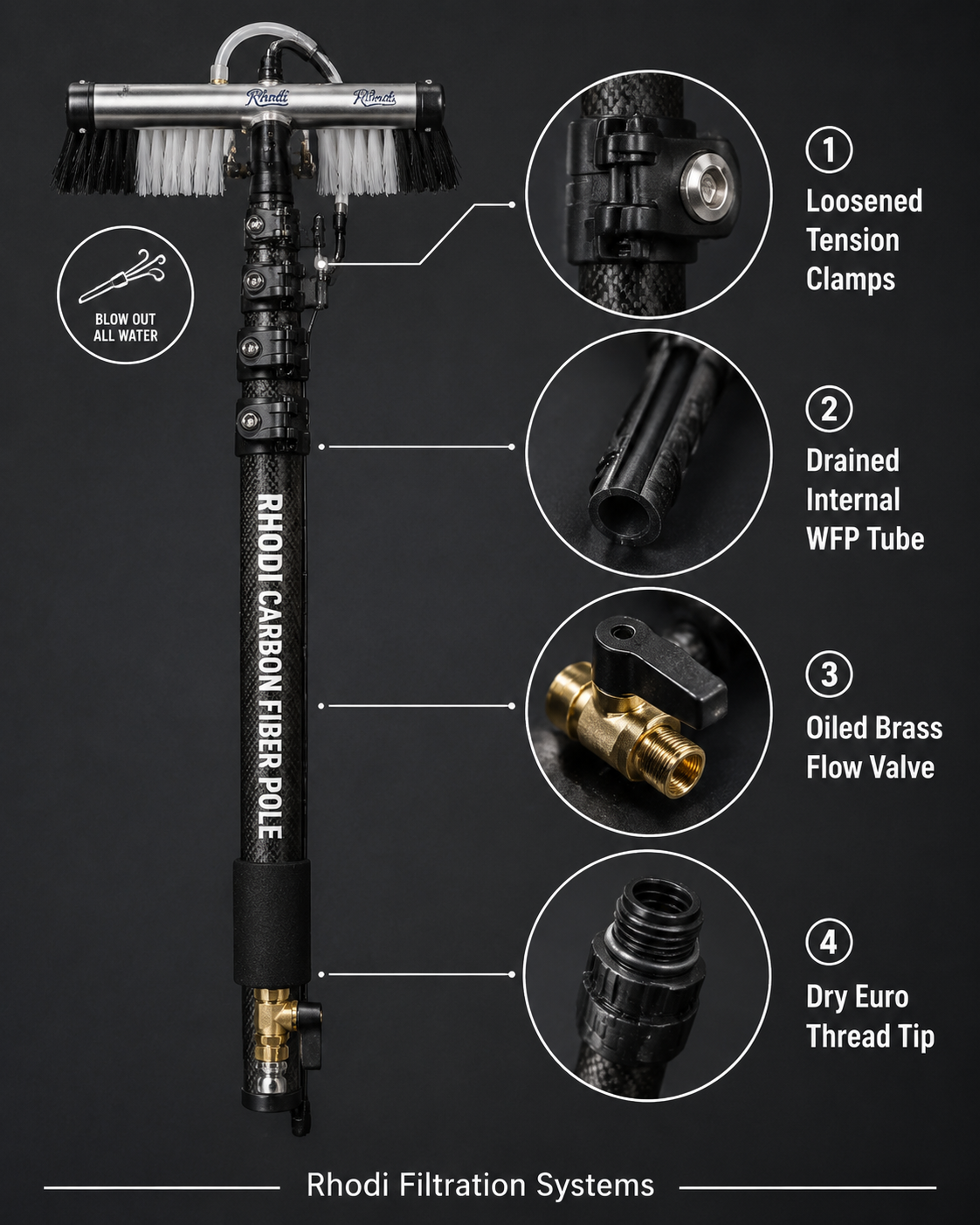

4. Preparing Your Telescopic Poles for Winter Storage
Your Rhodi UP Series carbon fiber poles and exterior cleaning accessories also require careful attention before winter storage. While carbon fiber itself handles sub-zero temperatures well, the water trapped inside the lines and accessory joints presents a major risk:
- Purge Internal Pole Tubing: Disconnect your Rhodi WFP Tube lines and run low-pressure compressed air through the line to clear out any remaining water pockets. If water freezes inside the thin-walled tubing, it will split the line open along the seam, causing a major pressure loss when you start your next job.
- Loosen Bolt-On Tension Clamps: Before packing your poles away for the winter, slightly loosen the stainless steel hex bolts on your heavy-duty Rhodi Pole Clamps. This removes constant physical tension from the composite levers during extreme temperature swings, preventing any material fatigue or warping.
- Protect Brass Fittings and Swivel Connections: Wipe down your WFP Brass Hose Valves, Brush Quick Connects, and Swivel Brush Adapters with a light protective tool oil. This keeps moisture from rusting the interior spring pins and locks, ensuring smooth, effortless snap connections when you assemble your rig in the spring.
The Verdict: Spend 20 Minutes Now to Save Thousands in Spring
In the professional exterior maintenance industry, your pure water setup is a vital revenue-generating engine. Letting a hard winter freeze destroy your delicate reverse osmosis membranes and filter housings because of skipped seasonal maintenance is a costly business mistake. Taking the time to properly drain your lines, store your sensitive filters indoors, and protect your Rhodi 0 Flow and Rhodi UP Series assets is an investment in your business's financial security. It completely eliminates unexpected spring repair bills, protects your busy project schedules, and ensures your equipment operates flawlessly for years to come.
